Google Tag Manager
Introduction
Google Tag Manager (GTM) is a tag management system that lets you add and update website tags—like tracking pixels and analytics scripts—without changing the site’s code. It simplifies tracking setup and improves marketing agility.
Getting started
This is a device-mode destination. You will need the relevant Container ID of your Google Tag Manager Workspace to connect this destination. You can find this information by following the steps below:
- Log into your Google Tag Manager Workspace homepage.
- Navigate to the upper right-hand corner of the page and locate the Container ID.
Connecting to the Google Tag Manager CDP destination
Before connecting destinations in the Chord CDP, please verify with all Destination owners that all non-Chord CDP configured destinations are disabled. Running external destinations alongside configured Chord CDP destinations can result in duplicate events downstream.
- Log into the Chord data platform.
- Navigate to the CDP.
- Click the "Add" button next to Destinations.
- Select Google Tag Manager from the destination catalog.
- Enter in the Destination Name, the Container ID, and Data Layer Name
- Destination Name- The arbitrary name you give to the destination
- Container ID- The GTM Container ID is found in your Google Tag Manager account.
- How to Find It
- Select your account and container
- The Container ID is displayed at the top of the workspace - it looks like GTM-XXXXXXX
- Data Layer Name- The dataLayerName field specifies the name of the JavaScript array that GTM uses to receive data on the page.
- How to Find It

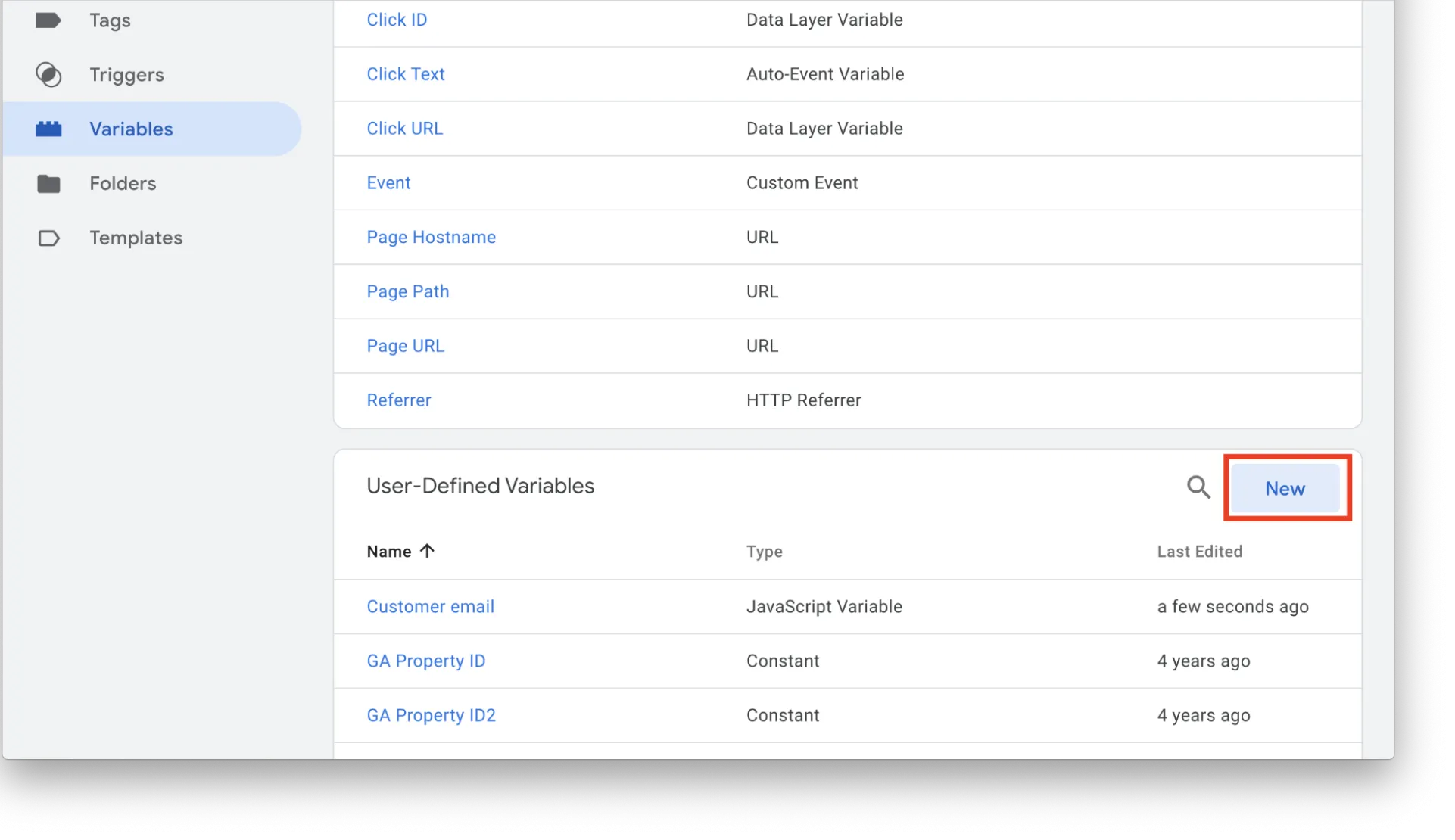

- Navigate to the Variables settings in the left-hand pane

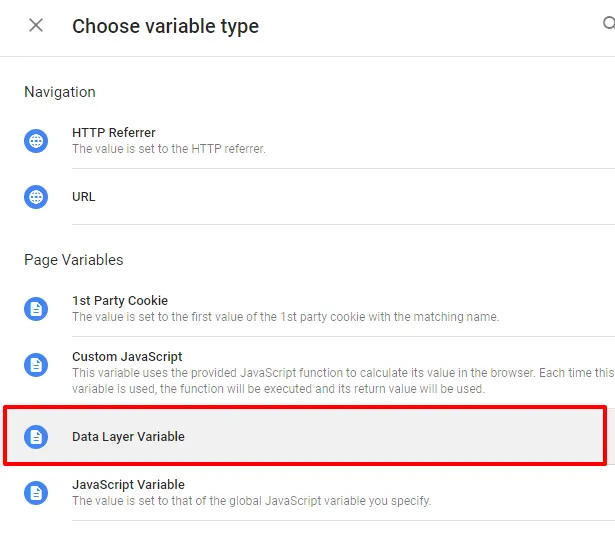

- Look for any configured Data Layer Variables
- If there isn't an explicit variable configured, this value will default to dataLayer
- Click "Create" to connect.
Events
All events push data to the Data Layer via dataLayer.push(eventData), followed by a dataLayer.push(function() { this.reset() }) call to clear the Data Layer state for the next event.
Page
Pushes a page event to the Data Layer.
Data Layer push:
Data Layer Key | Chord Source | Notes |
|---|---|---|
event | (hardcoded) "page" | |
userId | userId > "" | |
anonymousId | anonymousId > "" | |
name | properties.title > "" | |
url | properties.url > "" | |
title | properties.title > "" | |
properties | properties | Full properties object |
traits | traits merged with context.traits | |
Identify
Pushes an identify event to the Data Layer.
Data Layer push:
Data Layer Key | Chord Source | Notes |
|---|---|---|
event | (hardcoded) "identify" | |
userId | userId > "" | |
anonymousId | anonymousId > "" | |
properties.email > "" | | |
name | properties.name > "" | |
traits | traits merged with context.traits | |
Track
Pushes the track event to the Data Layer using the Chord event name directly.
Data Layer push:
Data Layer Key | Chord Source | Notes |
|---|---|---|
event | event (the Chord event name) > "track" | |
userId | userId > "" | |
anonymousId | anonymousId > "" | |
currency | properties.currency > "" | |
properties | properties | Full properties object, including properties.products[], properties.total, properties.order_id, etc. |
traits | traits merged with context.traits | |
All track events are forwarded with no event-name-specific mapping. GTM tags and triggers handle the routing. All tracking plan fields are available under the properties key in the Data Layer (e.g., properties.products[0].name, properties.products[0].price, properties.total).
Initialization
The plugin initializes the Data Layer array with the user_id from the first event, pushes a gtm.start timestamp event, then loads the GTM container script from googletagmanager.com/gtm.js?id={containerId}. If a custom dataLayerName is configured, it is passed as the &l= parameter.
The plugin manages SDK loading state (fresh → loading → loaded/failed) to prevent duplicate script loads. If the script fails to load, subsequent events are silently dropped.
CSP Requirements
If your site uses a Content Security Policy, allow the following domains:
Directive | Domain |
|---|---|
script-src | https://www.googletagmanager.com |
connect-src | https://www.googletagmanager.com |
